InRow RD, 300mm, Air Cooled, 220-240V, 50Hz

  • 28/10/2014
  • 1951
The main benefits of APC InRow: Eliminate hot spots caused by the exploitation of high density. Flexibility to easily deploy and redeploy cooling. Maximize space for IT equipment. Solve the water risk appear in the data center,according to the most effective method. Eliminating the need to restructure the floor layout when you connect additional devices to cool the existing area. Ensures stable internal temperature for IT equipment.

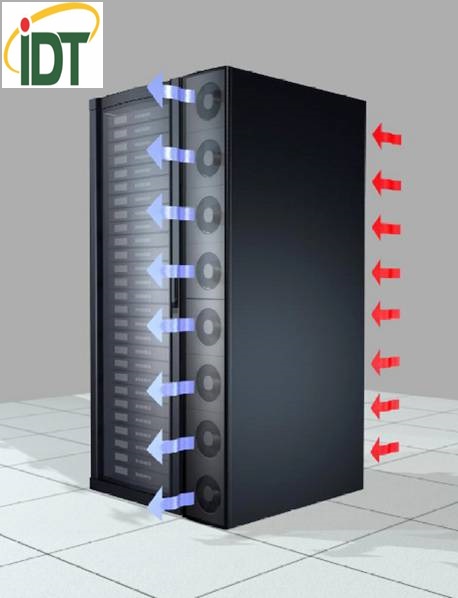

MÁY LẠNH CHÍNH XÁC APCClose-coupled, air, water, and glycol cooling for closets, server rooms, and data centers

Includes: Installation guide, Operations and maintenance manual

Standard Lead Time: Special Order - Call for Quoted Lead Times

Technical Specifications

Cooling Type
Air-cooled Split System
      Nominal Cooling Capacity
9.90 kW
      Coolant
R410A
      Entering Air Relative Humidity
32.0%
      Entering Air Temperature
85.0 °F (29.44 °C)
Based on sea level operation

General

Compressor Type
Scroll
Air Discharge Patterns
Horizontal
Intake Air
Rear Return
Air Flow
1080.76 lps
Condensate Pump Capacity
0.002 lps

Input

Nominal Input Voltage
220, 240
Input Power
4400 Watts
Input Frequency
50 Hz
Rack Height
42U

Communications & Management

Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity

Physical

Maximum Height
1991.00 mm
Maximum Width
300.00 mm
Maximum Depth
1070.00 mm
Net Weight
183.64 KG
Shipping Weight
221.82 KG
Shipping Height
2118.00 mm
Shipping Width
746.00 mm
Shipping Depth
1137.00 mm
Color
Black
Units per Pallet
1.00

Conformance

Regulatory Approvals
cUL Listed, C-tick, CE, UL Listed
Standard Warranty
1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up
