InRow SC, 300mm, Air Cooled, Self-contained 200-240V 60Hz
- 28/10/2014
- 4962

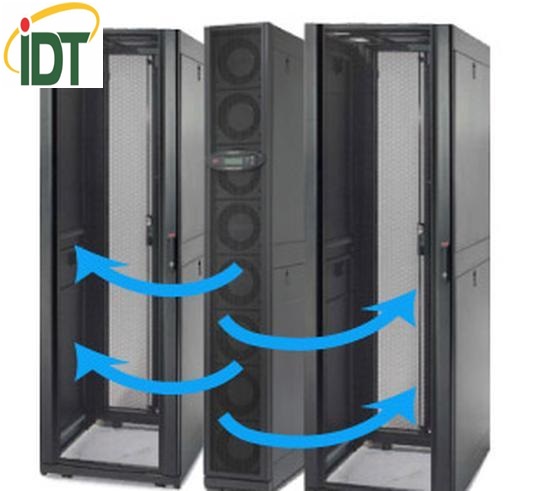

The main benefits of APC InRow: Eliminate hot spots caused by the exploitation of high density. Flexibility to easily deploy and redeploy cooling. Maximize space for IT equipment. Solve the water risk appear in the data center,according to the most effective method. Eliminating the need to restructure the floor layout when you connect additional devices to cool the existing area. Ensures stable internal temperature for IT equipment.
Close-coupled, air, water, and glycol cooling for closets, server rooms, and data centers
Includes: Exhaust duct kit, Installation guide, Operations and maintenance manual
Standard Lead Time: Usually Ships within 2 Weeks
Technical Specifications
Cooling Type
Air-cooled Self-contained
Nominal Cooling Capacity
5.25 kW
Coolant
R410A
Entering Air Relative Humidity
34.0%
Entering Air Temperature
85.0 °F (29.44 °C)
General
Compressor Type
Rotary
Air Discharge Patterns
Horizontal
Intake Air
Rear Return
Refrigerant Charge
1.36 KG
Air Flow
566.34 lps
Amp Draw In-Rush
56A
Condensate Pump Capacity
0.002 lps
Input
Number of Power Cords
1
Nominal Input Voltage
200, 208, 220, 230
Input Power
2940 Watts
Input Frequency
60 Hz
Rack Height
42U
Input Connections
| NEMA L6-20P |
 |
Communications & Management
Control panel
Multi-function LCD status and control console
| Load | Loss |
| 25% | 0.0% |
| 50% | 31.9% |
| 75% | 34.7% |
| 100% | 41.7% |
Physical
Maximum Height
1991.00 mm
Maximum Width
300.00 mm
Maximum Depth
1069.00 mm
Net Weight
165.92 KG
Shipping Weight
216.00 KG
Shipping Height
2156.00 mm
Shipping Width
762.00 mm
Shipping Depth
1138.00 mm
Color
Black
Environmental
Storage Temperature
0 - 40 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-4500 meters
Audible noise at 1 meter from surface of unit
80.00 dBA
Conformance
Regulatory Approvals
BSMI, EN 55022 Class A, FCC Part 15 Class A, ICES-003, UL Listed, VCCI, VDE
Standard Warranty
1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up
Sustainable Offer Status
Other Environmental Compliance
China RoHS
