IDT cung cấp bộ lưu điện APC các dòng online chuyên dùng cho phòng server như: SMT1000I; SMT2200I; STM300I; SRT2200XLI; SRT2200RMXLI; SRT3000XLI; SRT3000RMXLI; SRT5KXLI; SRT5KRMXLI; SRT6KXLI; SRT6KRMXLI; SRT8KXLI; SRT8KRMXLI; SRT10KXLI; SRT10KMRXLI;....
Khi quý Vị cần các dịch vụ bộ lưu điện APC, quý khách vui lòng liên hệ IDT:

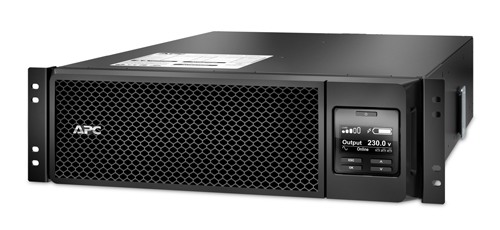

Bộ lưu điện APC SRT5KXLI, công suất 5.000Va, được thiết kế dạng đứng, chưa bao gồm railkit, thường dùng cho máy tính, wifi, máy ATM, các thiết bị y tế,...
Nếu mình cần lắp tủ rack hay treo thì phải dùng đến railkit hay gọi là giá đỡ, để treo lên, tiết kiện diện tích hoặc chuyển sang dùng bộ lưu điện APC, mã SRT5000RMXLI (mã này UPS và có railkit kèm theo)
Sau đây là thông tin chi tiết về UPS APC SRT5KXLI
Output bộ lưu điện APC SRT5KXLI
Output power capacity
4.5 KWatts / 5.0 kVA
Max Configurable Power (Watts)
4.5 KWatts / 5.0 kVA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(6) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage
230V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations
160 - 275V
Input voltage adjustable range for mains operation
100 - 275 (half load)V
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Proposition 65 Warning
Available in Documentation tab
10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Smart-UPS On-Line Features & Benefits
Cold-start capable
Provides temporary battery power when the utility power is out.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Disconnected battery notification
Warns when a battery is not available to provide backup power.
