BỘ LƯU ĐIỆN SUA1000RMI2U
IDT chuyên phân phối bộ lưu điện APC các loại SUA1000RMI2U, SUA1500RMI2U, SUA2200RMI2U, SUA3000RMI2U, SUA5000RMI2U.
Bộ lưu điện SUA1000RMI2U chuyên dùng cho phòng server, có railkit để gắn tủ rack, giúp tiết kiệm không gian phòng server.

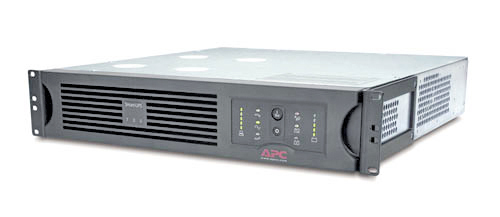

Bộ lưu điện APC SUA1000RMI2U (mặt trước)

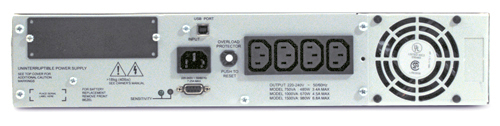

Bộ lưu điện APC SUA1000RMi2U (mặt sau)
Bộ lưu điện APC SUA1000RMI2U
Sau đây, là thông số của bộ lưu điện SUA1000RMI2U:
| provided equipment |
CD with software |
|
|---|---|---|
| performance multiplier |
1 |
|
| Number of tare power |
30 W |
|
| Number of power module free slots |
0 |
|
| Number of power module filled slots |
0 |
|
| redundant |
No |
|
| size UPS version |
Internetworking |
|
| UPS size |
S |
|
| value multiplier |
1 |
| number of rack unit |
2U |
|
|---|---|---|
| colour |
Black |
|
| depth |
45.7 cm |
|
| height |
8.9 cm |
|
| mounting location |
Front |
|
| mounting preference |
Lower |
|
| net weight |
28.18 kg |
|
| mounting mode |
Rack-mounted |
|
| two post mountable |
0 |
|
| USB compatible |
Yes |
|
| width |
43.2 cm |
| network frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
|---|---|---|
| plug standard |
IEC 320 C14 |
|
| input voltage limits |
151...302 V adjustable |
|
| number of cables |
1 |
|
| input voltage |
230 V |
| rated power in W |
670 W |
|
|---|---|---|
| Maximum configurable power in W |
670 W |
|
| harmonic distortion |
Less than 5 % at full load |
|
| output frequency |
47...53 Hz for 50 Hz nominal sync to mains |
|
| crest factor |
Up to 5 : 1 |
|
| UPS type |
Line interactive |
|
| Wave type |
Sine wave |
|
| nb of power socket outlets |
4 IEC 320 C13 |
|
| curve equation |
Efficiency |
|
| curve load maximum |
100 % |
|
| curve X-axis maximum |
100 % |
|
| curve X-axis minimum |
0 % |
|
| curve X-axis title |
Load |
|
| curve X-axis units |
Percentage |
|
| curve Y-axis maximum |
100 % |
|
| curve Y-axis title |
Efficiency |
|
| curve Y-axis units |
Percentage |
|
| graph display |
1 |
|
| output voltage |
230 V |
|
| Maximum configurable power in VA |
1000 VA |
|
| rated power in VA |
1000 VA |
|
| Transfer time |
2 ms typical |
| product certifications |
C-Tick |
|
|---|---|---|
| standards |
EN 50091-1 |
| ambient air temperature for operation |
0…40 °C |
|
|---|---|---|
| relative humidity |
0…95 % |
|
| operating altitude |
0...10000 ft |
|
| ambient air temperature for storage |
-15…45 °C |
|
| Storage Relative Humidity |
0…95 % |
|
| storage altitude |
0.00…15240.00 m |
|
| acoustic level |
36 dBA |
|
| heat dissipation |
89 Btu/h |
|
| show note OP temperature |
No |
| battery type |
Lead-acid battery |
|
|---|---|---|
| number of battery filled slots |
0 |
|
| number of battery free slots |
0 |
|
| Battery recharge time |
3 h |
|
| number of battery replacement quantity |
1 |
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
| liquid value |
0 |
|
| battery curve |
Z |
|
| battery charger power |
112 W rated |
|
| Battery power in VAH |
336 VAh runtime |
|
| battery life |
4…6 year(s) |
|
| extended runtime |
0 |
| free slots |
1 |
|
|---|---|---|
| control panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
|
| alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
| Emergency power off |
Optional |
| Surge energy rate |
480 J |
|
|---|---|---|
| noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Package 1 Weight |
31.45 kg |
|
|---|---|---|
| Package 1 Height |
25.4 cm |
|
| Package 1 width |
59.4 cm |
|
| Package 1 Length |
60.3 cm |
|
| Number of Units in Package 2 |
1 |
|
| Number of Units in Package 3 |
8 |
| Sustainable offer status |
Green Premium product |
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant |
