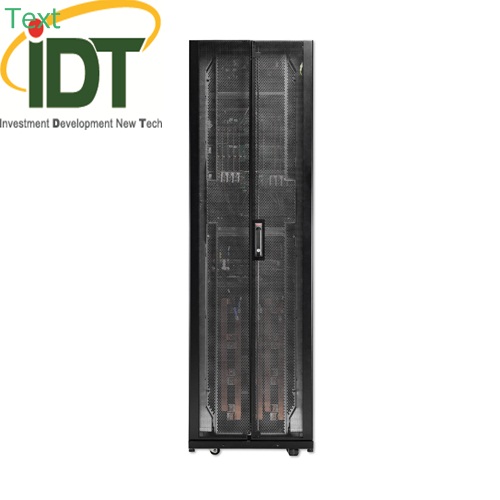

Scalable power, runtime & distribution in a high-density, single-frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48kW/48kVA. Suitable for small & medium data center applications.
Includes: Network Management Card, Start-Up Service
Standard Lead Time: Usually Ships within 2 Weeks
General
Bypass Connection
5 wire (3PH + N + G)
Bypass Voltage Tolerance
+/-10% settable from +/-4/6/8 and 10%
Max Bypass Input Current
80A
Bypass Protection Device
80A
Output
Output Power Capacity
48 kW / 48 kVA
Max Configurable Power
48 kW / 48 kVA
Nominal Output Voltage
230V, 400V 3PH
Output Voltage Note
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
380, 400, 415
Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform Type
Sine wave
Output Voltage Tolerance
+/-1% static and +/- 5% at 100% load step
Output Voltage THD
< 2% for 0 to 100% linear load and < 6% for full non linear load
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Required Output Current Protection
100A
Bypass
Built-in Static Bypass
Input
Nominal Input Voltage
400V 3PH
Input Frequency
40 - 70 Hz
Input Connections
| Hard Wire 5-wire (3PH + N + G) |
Input voltage range for main operations
340 - 477V
Other Input Voltages
380, 400, 415
Maximum Input Current
98A
Input Breaker Capacity
100 A
Maximum Short Circuit Withstand (Icw)
30.0 kA
Input Total Harmonic Distortion
Less than 5% for full load
Type of Input Protection Required
gL fuse
Batteries & Runtime
Battery Type
VRLA
Included Battery Modules
4
Typical recharge time
3 hour(s)
RBC™ Quantity
4
Nominal Battery Voltage
+/-192 V (split battery referenced to neutral)
End of Discharge Battery Voltage
+/-154 V
DC Overcurrent Protection
1008A
Maximum Available Short Circuit Current
4 kA
Efficiency in Battery Operation
94.00%
End of Discharge Maximum Battery Current
165
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Extended Run Options
Runtime Graph
| Curve | Part Number(s) |
| A | SY48K48H-PD |
| B |
SY48K48H-PD + (1)SYCFXR48-9 |
| C |
SY48K48H-PD + (2)SYCFXR48-9 |
| D |
SY48K48H-PD + (3)SYCFXR48-9 |
| E |
SY48K48H-PD + (4)SYCFXR48-9 |
| Load | Efficiency |
| 25% | 94.2% |
| 50% | 95.4% |
| 75% | 95.3% |
| 100% | 94.9% |
Communications & Management
Interface Port(s)
DB-9 RS-232, SmartSlot
Available SmartSlot™ Interface Quantity
2
Pre-Installed SmartSlot™ Cards
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
1991.00 mm
Maximum Width
600.00 mm
Maximum Depth
1070.00 mm
Rack Height
42U
Net Weight
796.00 KG
Shipping Weight
858.00 KG
Shipping Height
2140.00 mm
Shipping Width
848.00 mm
Shipping Depth
1210.00 mm
Color
Black
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-999.9 meters
Storage Temperature
-15 - 40 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
61.00 dBA
Online Thermal Dissipation
7719.00 BTU/hr
Protection Class
NEMA 1
Conformance
Regulatory Approvals
EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, Eurobat General Purpose, FCC Part 15 Class A, ISO 14001, ISO 9001, VFI-SS-111
Standard Warranty
1 year on-site repair or replace with factory authorized Start-Up
