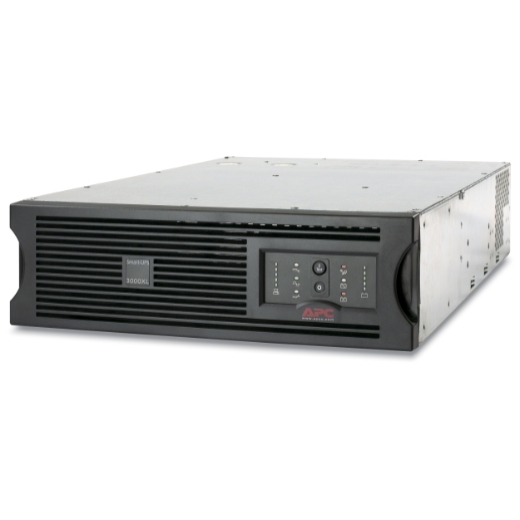

BỘ LƯU ĐIỆN APC SUA3000RMXLI3U

BỘ LƯU ĐIỆN APC SUA3000RMXLI3U

Bộ lưu điện APC SUA3000RMXLI3U được thiết kế lắp đặt vào tủ rack của phòng server, gọn, nhẹ. Đảm bảo tiết kiệm không gian, thuận tiện di dời nếu cần.

Thông tin kỹ thuật cảu bộ lưu điện APC SUA3000RMXLI3U

Run time for load: Min-max: 270-2700 W: 5m 26s

Max. Capacity Used: 100%

Output power capacity: 2.7kWatts / 3.0kVA

Rack Height: 3U

Output Connections

(1) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Nominal Output Voltage: 230V

Nominal Input Voltage: 230V

Input Connections: BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P

Cord Length: 1.8meters

Technical Specifications SUA3000RMXLI3U

Output

Max Configurable Power (Watts): 2.7kWatts / 3.0kVA

Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load: 94.0 %

Output Voltage Distortion: Less than 5 % at full load

Output Frequency (sync to mains): 47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains

Load Crest Factor

Up to 5 : 1

Topology: Line interactive

Waveform type: Sine wave

Transfer Time: 2-4 ms

Input

Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V

Number of Power Cords: 1

Efficiency at Full Load: 94.0 %

Other Input Voltages: 220 V, 240 V

Transfer Time: 2-4 ms

Batteries & Runtime của SUA3000RMXLI3U

Battery type: Lead-acid battery

Typical recharge time: 3hour(s)

Replacement Battery: APCRBC105

Expected Battery Life (years): 3 - 5

RBC Quantity: 1

Battery Charge Power (Watts): 287 Watts

Extendable Run Time: 1

Runtime

View Runtime Graph

Communications & Management

Interface Port(s): DB-9 RS-232, SmartSlot

Control panel: LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators

Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO): Optional

Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

Surge energy rating: 480Joules

Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height: 133MM, 13.3CM

Maximum Width: 483MM, 48.3CM

Maximum Depth: 660MM, 66.0CM

Net Weight: 62.73KG

Shipping weight: 74.0KG

Shipping Height: 290MM, 29.0CM

Shipping Width: 600MM, 60.0CM

Shipping Depth: 990MM, 99.0CM

Color: Black

Master Carton Units: 1.0

Units per Pallet: 6.0

Environmental SUA3000RMXLI3U

Operating Temperature: 0 - 40 °C

Operating Relative Humidity: 0 - 95 %

Operating Elevation: 0 - 3048meters

Storage Temperature: -15 - 45 °C

Storage Relative Humidity: 0 - 95 %

Storage Elevation: 0 - 15240meters

Audible noise at 1 meter from surface of unit: 53.0dBA

Online thermal dissipation: 375.0BTU/hr

Conformance

Approvals: C-Tick, CE, EN 50091-1, EN 50091-2, GOST, VDE

Standard warranty: 2 years repair or replace, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS: Compliant

PEP: Available in Documentation tab

EOLI: Available in Documentation tab
